Diffusion Bonding Crystal

Diffusion Bonding Crystal

These Diffusion Bonded composite crystals are used to effectively decrease heat effect of solid-State High-Power Laser

High damage threshold

Improve beam quality

Decrease thermal effect

Improve efficiency

Compact size

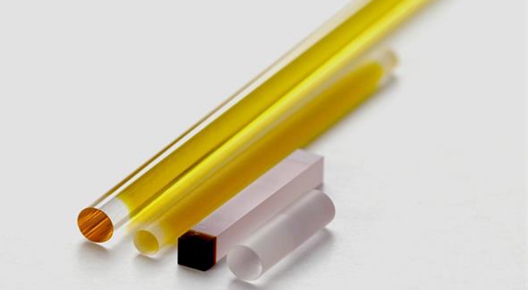

Composite laser rod is a crystal consisting of two ,three or more parts with different dopant level .Usually,doped and undoped material used.

Dopant level and rod configuration can vary as well as the number of parts. It can have different wedged structure,Brewster angles,etc.



YAG+Nd:YAG+YAG

Cr4+:YAG +Nd:YAG

YVO4+Nd:YVO4

YVO4+Nd:YVO4+YVO4

Yb:YAG+Cr4+:YAG





Specifications:



Nd:YAG Doping

0.1-1.3%

Nd:YVO4 Doping

atm0.2-3%

Diameter Tolerance

+0,-0.2mm

Length Tolerance

+0.5,-0mm

Parallelism

<10 arc seconds

Perpendicularity

<5 arc minutes

Chamfer

0.1mm@45°

Barrel Finish

50-80 micro-inch(RMS)

Wavefront Distortion

<λ/10 per inch @632.8nm

Surface Quality

  10/5

Clear Aperture

>95%

Intrinsic Loss

<0.1%cm-1

Scattering Sites

  invisible,probed with a He-Ne laser
